$871.76 VAT will be applied at the time of checkout

The Kit Universal MAGBench FULL (FLK10) by Magicmotorsport is the comprehensive bench programming solution for mechatronic workshops. Built around the advanced MAGBench V3 frame, this comprehensive bundle gives technicians to perform fast, stable Boot, BDM, and JTAG connections on engine control units (ECUs) and automatic transmission units (TCUs), including heavy-duty vehicles.

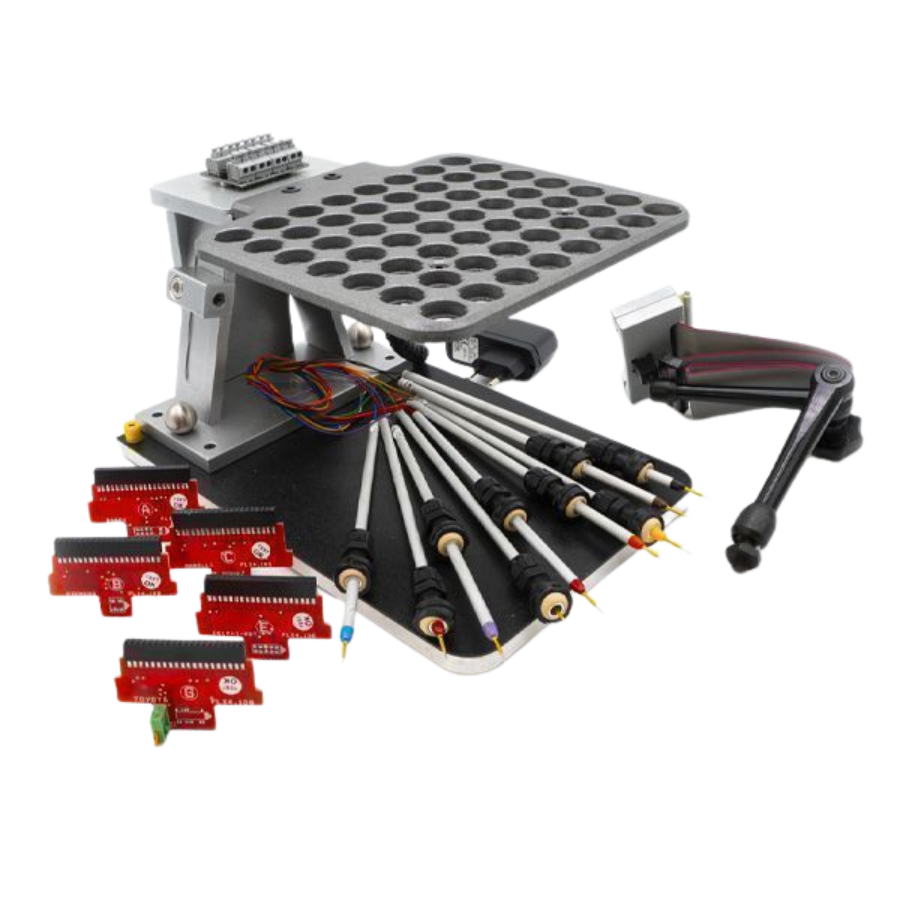

Featuring a patented upper panel with 56 precision positioning slots, an integrated LED-illuminated work area, and an analog lifting mechanism, the MAGBench FULL designed to support accurate, stable and safe connections. This complete kit includes the Universal MAGBench V3 frame with 8 color-coded pogo pin probes, a complete BDM adapter kit (Bosch, Siemens, Marelli, Delphi), a flexible articulating arm, and a dedicated Toyota JTAG Renesas/NEC adapter.

SKU: FLK10 Categories: ,

Description

The Kit Universal MAGBench FULL (FLK10) provides a comprehensive set up in bench programming equipment for modern automotive, heavy-duty, and mechatronics workshops. Designed by Magicmotorsport, this all-in-one package equips technicians with a complete hardware ecosystem to execute secure, high-precision chip tuning and microcontroller programming in Boot, BDM, and JTAG modes using a stable and organised probe-based working setup.

Patented Design & Unmatched Precision

At the center of this package is the Universal MAGBench V3 frame, engineered to handle even complex, extra-large control units. Key operational highlights include:

  • Patented 56-Slot Upper Panel: Provides limitless positioning flexibility for pogo pin probes, allowing exact pin placement across a wide range of ECU and TCU layouts.
  • LED-Illuminated Base: Brightly lights up the working area beneath the control unit, helps improve visibility when positioning probes and making detailed connections.
  • Smooth Analog Lifting Mechanism: Allows smooth vertical movement of the top panel to apply uniform contact pressure without damaging sensitive electronic components.
  • Color-Coded Probing System: Includes eight spring-loaded pogo pin probes color-matched to standard reference wiring for fast, to make matching probes with reference cables quicker and easier.

What’s Included in the Full Kit (FLK10):

Whether you are remapping passenger cars, modifying TCUs, or repairing heavy-duty vehicle modules, the Kit Universal MAGBench FULL streamlines your bench workflow. It minimizes setup times, helps technicians establish a stable and consistent programming connection with a clean, professional environment for all advanced microcontroller programming.

  • 1x Universal MAGBench V3 Main Frame (FLK08)
  • 8x Color-Coded Adjustable Pogo Pin Probes

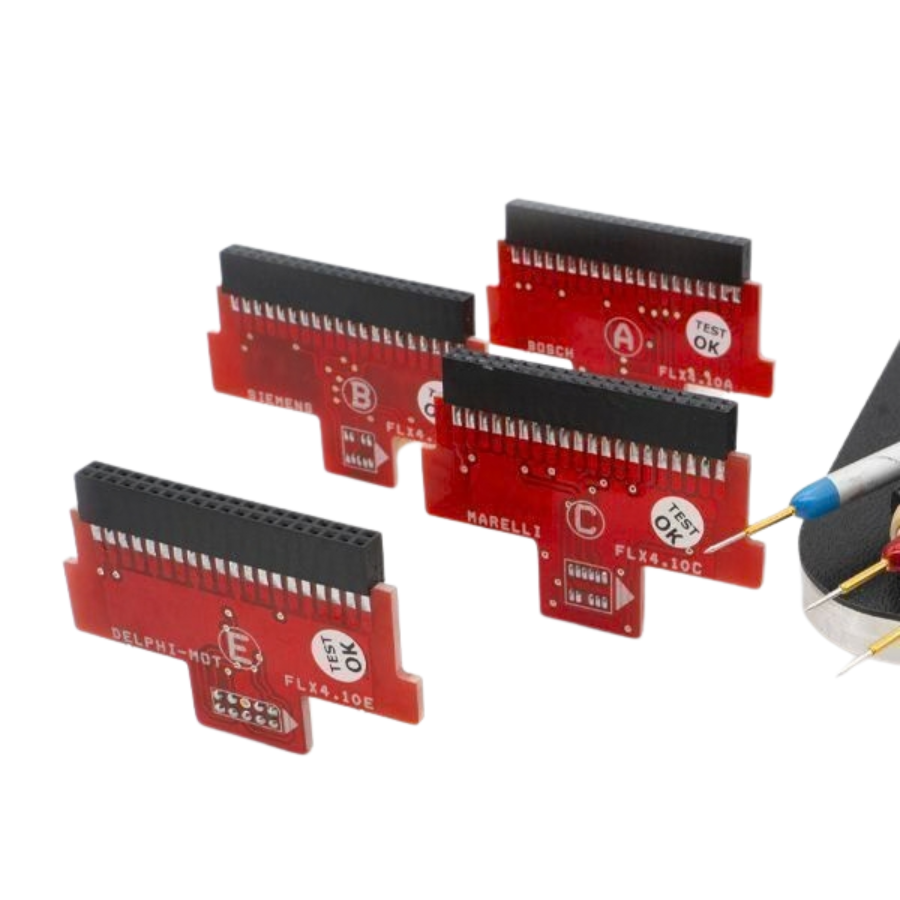

  • 1x Complete BDM Adapter Kit (FLK04)

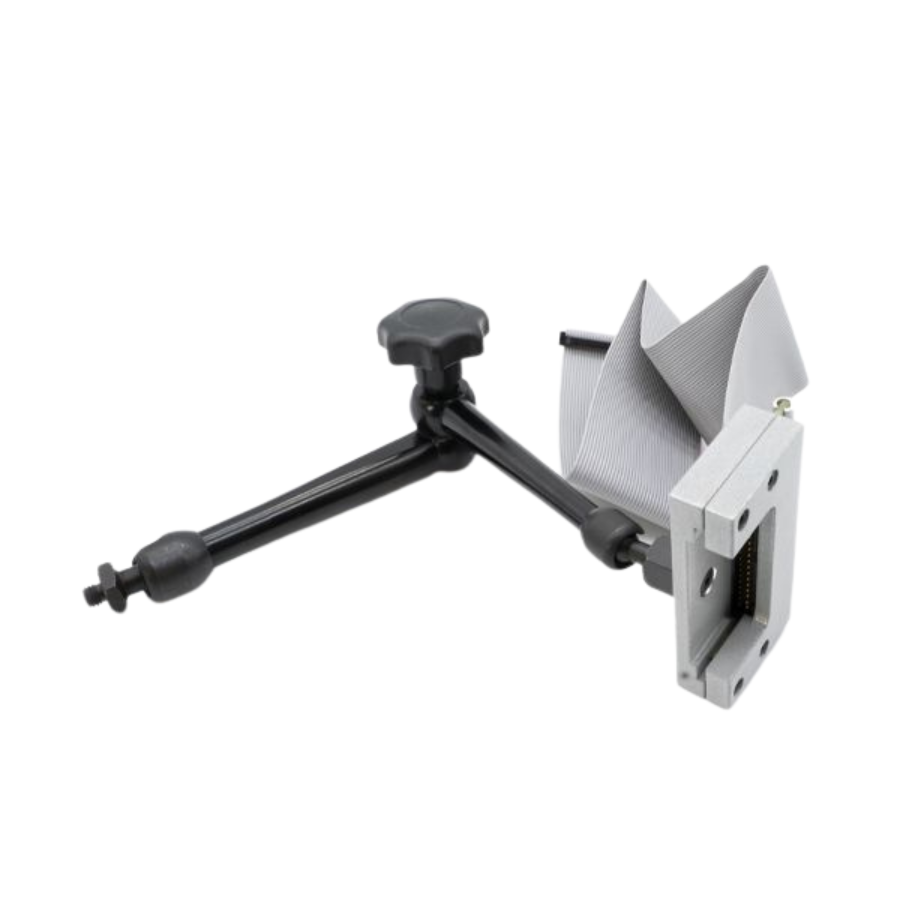

  • 1x Universal Articulating Arm (FLX4.10)

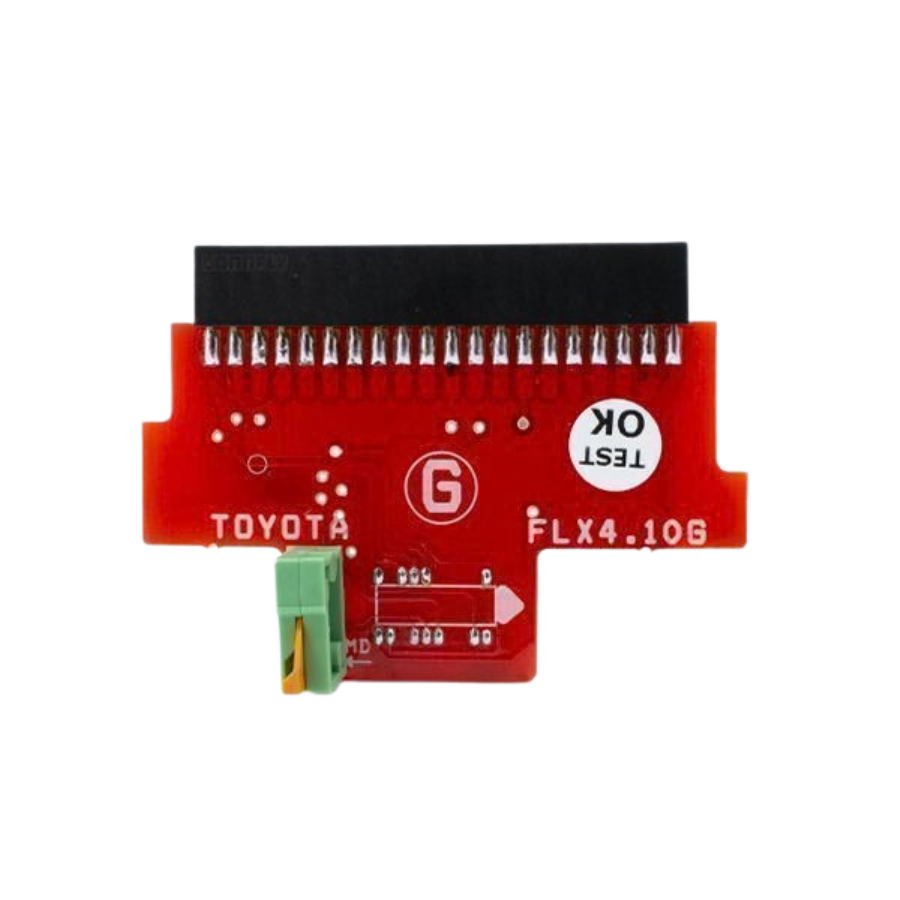

  • 1x Toyota JTAG Renesas/NEC Adapter (FLX4.10G)
  • Integrated LED Lighting System & Power Cable
  • Protective Neoprene Sheet & User Manual
