Description
Unlock protected Bosch MD1 and MG1 ECUs in your own workshop

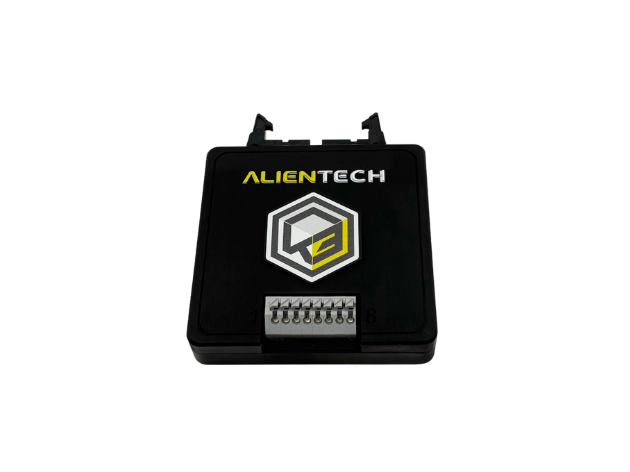

The Alientech KESS3 Unlock Module is a dedicated accessory developed for workshops that need to work with selected protected Bosch MD1 and MG1 ECUs. It expands the operations available through KESS3 by enabling the supported BOOT Unlock procedure to be carried out directly in-house, rather than separating the unlock stage from the later programming process.
The module extends workshop capability across a broad mix of diesel and petrol cars, SUVs, commercial vehicles and agricultural applications, helping technicians keep the unlock and programming process in-house.
Compatible ECUs include MD1CS003, MD1CS069, MD1CP007, MD1CS012, MG1CS042, MD1CS004 HW80, MG1CS031, MD1CP006, MD1CS005 and MG1CS002. A KESS3 CAR BENCH/BOOT activation and active subscription are required.
Technical Features
| Feature | Details |
|---|---|
| Product type | Dedicated BOOT unlock accessory for KESS3 |
| Working mode | BOOT |
| Software environment | KESS3 |
| Required activation | KESS3 CAR BENCH/BOOT activation |
| Subscription requirement | Active KESS3 subscription required for the supported protocols |
| Supported operations | ECU unlock, BOOT reading, BOOT writing, memory access and complete ECU backup |
| Supported ECUs | MD1CS003, MD1CS069, MD1CP007, MD1CS012, MG1CS042, MD1CS004 (HW80), MG1CS031, MD1CP006, MD1CS005 and MG1CS002 |
| Vehicle coverage | Supported petrol and diesel cars, SUVs, commercial vehicles and agricultural applications, primarily from 2021 onwards |
| Accessory requirement | The KESS3 Unlock Module is required to perform the BOOT Unlock procedure on supported protected Bosch MDG1 ECUs |
What does the module do?
The module is specifically designed to manage the BOOT Unlock procedure on supported ECUs. Once the unlock has been completed, KESS3 can access the ECU memories in BOOT mode, allowing reading, writing and a complete backup of the ECU contents. This gives the technician control of the process from initial unlock through to memory access and subsequent programming.
Which ECUs are supported?
At launch, Alientech lists support for MD1CS003, MD1CS069, MD1CP007, MD1CS012, MG1CS042, MD1CS004 (HW80), MG1CS031, MD1CP006, MD1CS005 and MG1CS002. Coverage applies to selected applications produced from 2021 onwards across a wide range of manufacturers. Be sure to check the official supported vehicle list for the latest coverage.
Hardware Kit Contents
| Included item | Details |
|---|---|

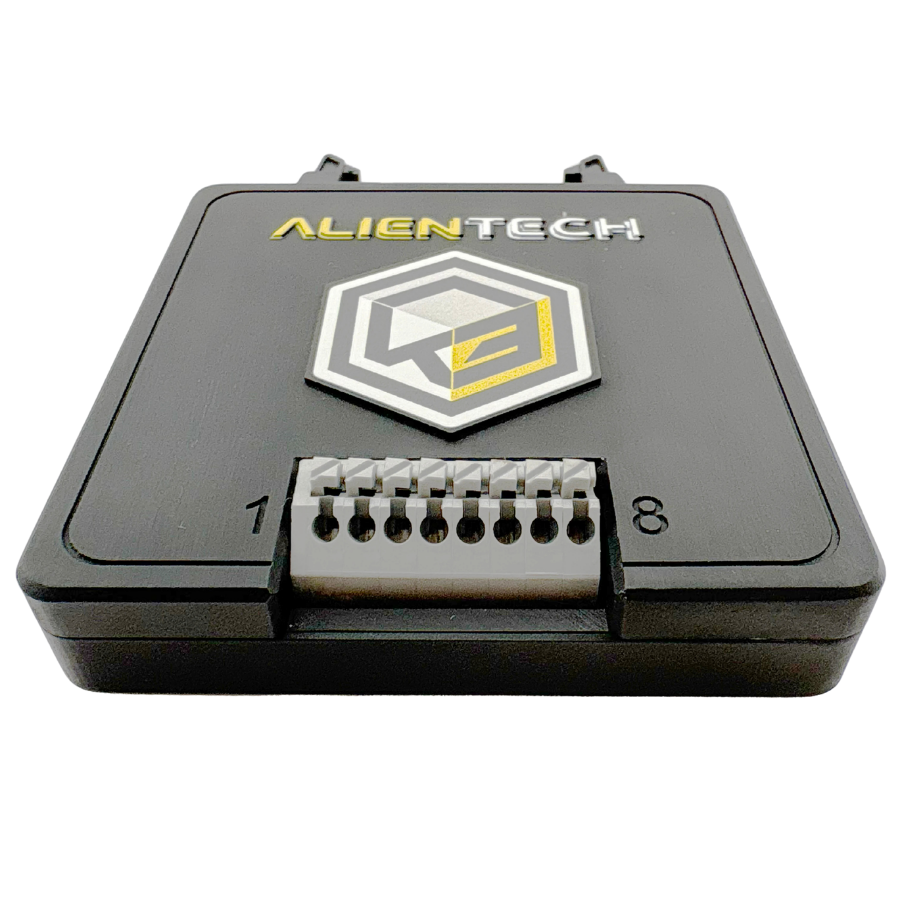

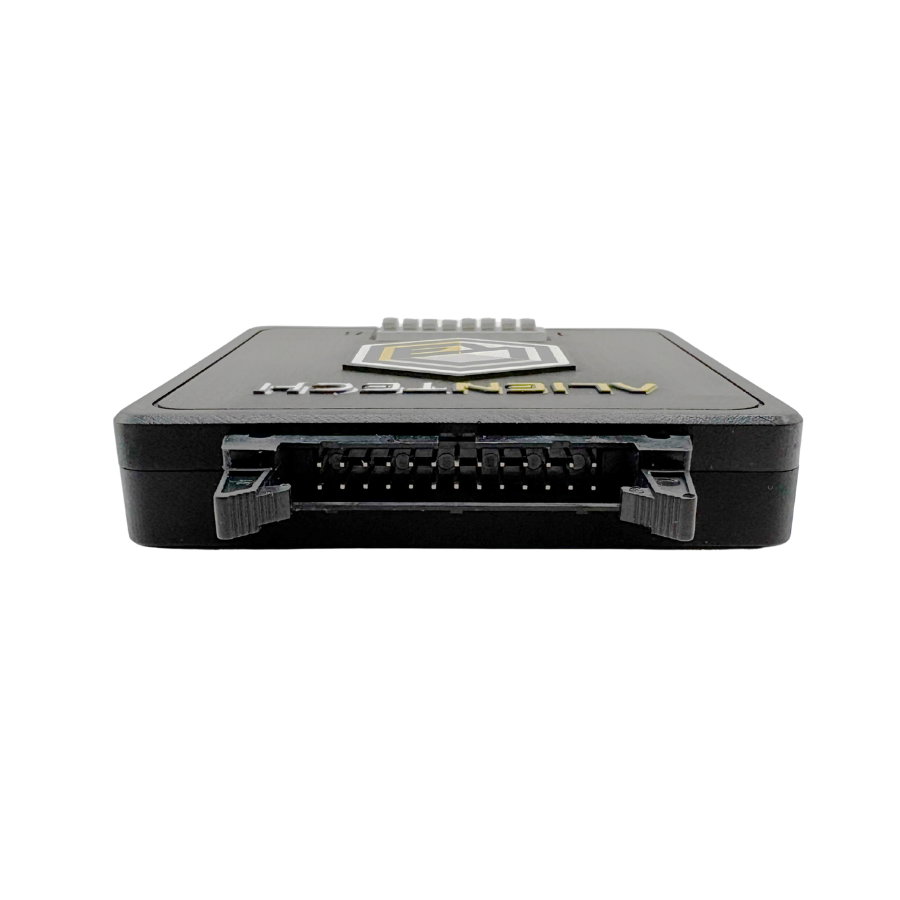

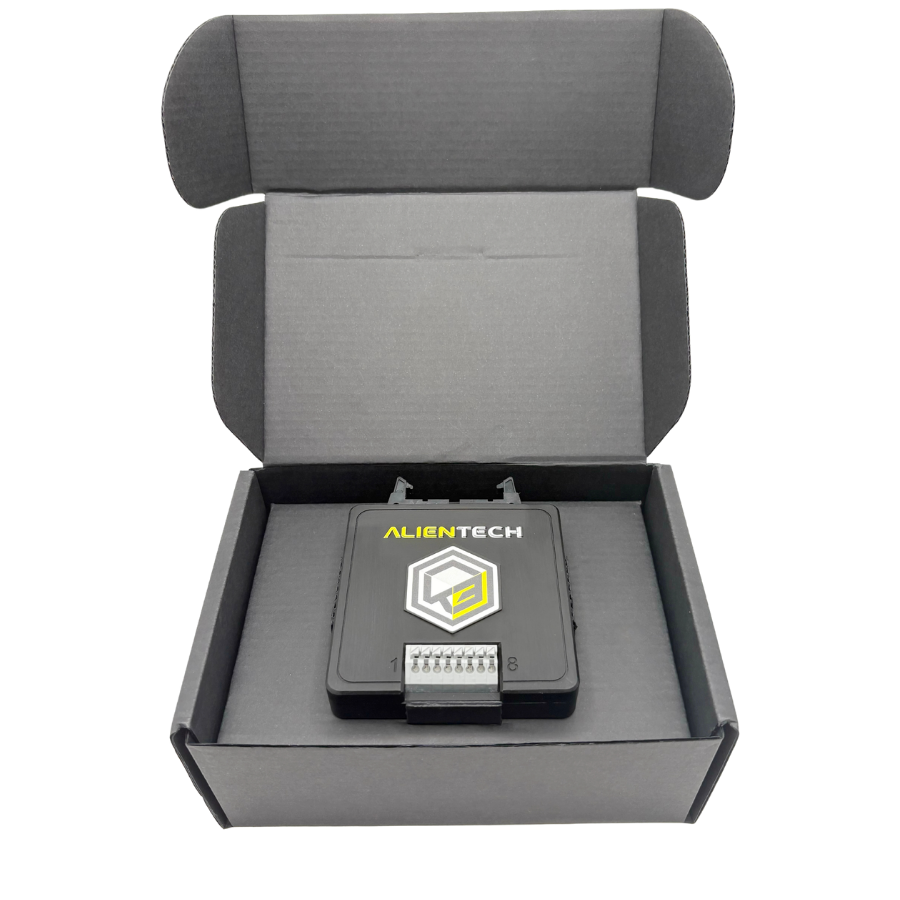

| Hardware module | 14AS00T11S |

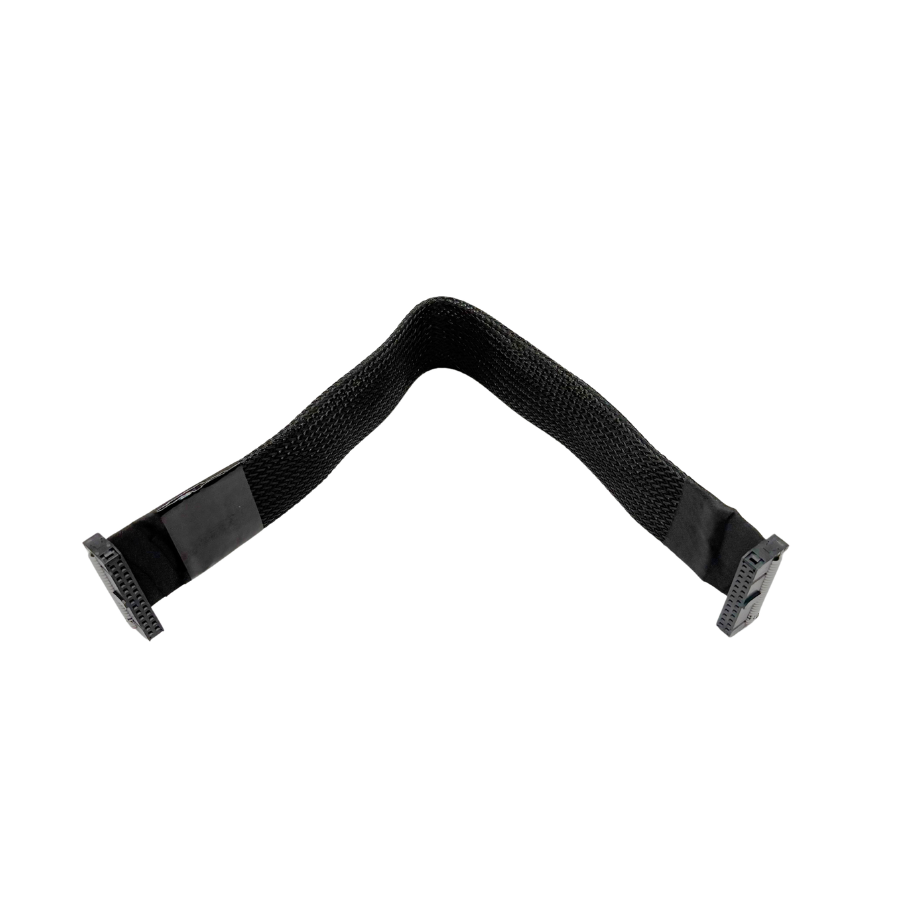

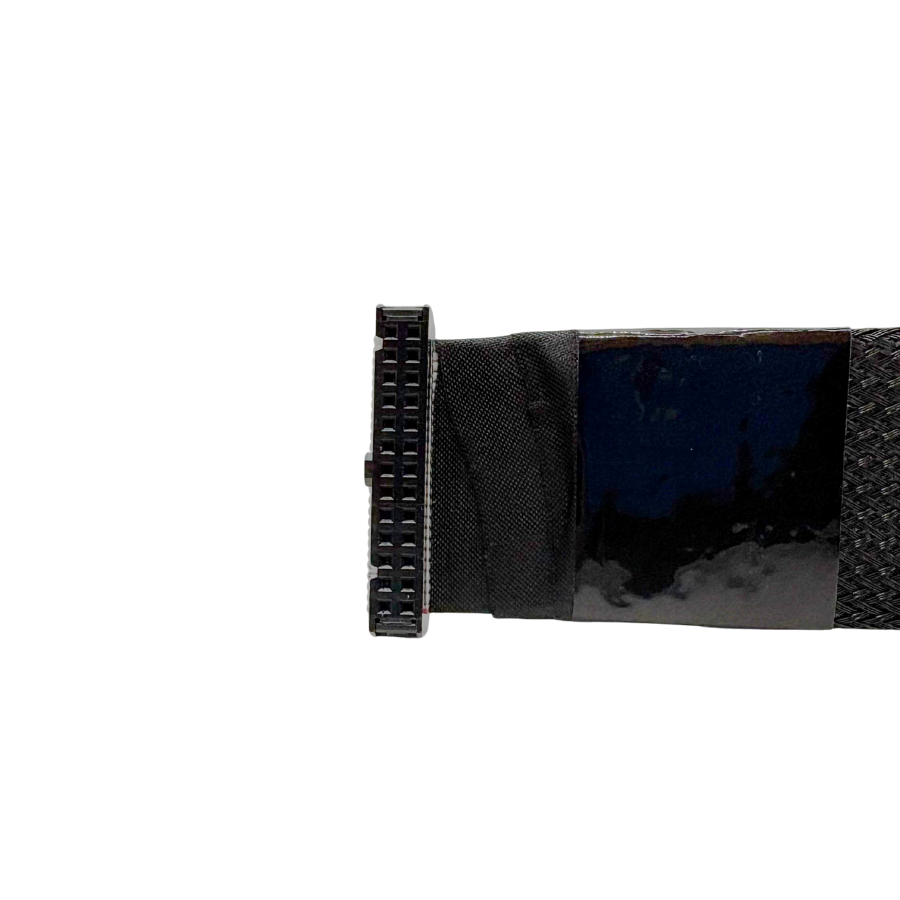

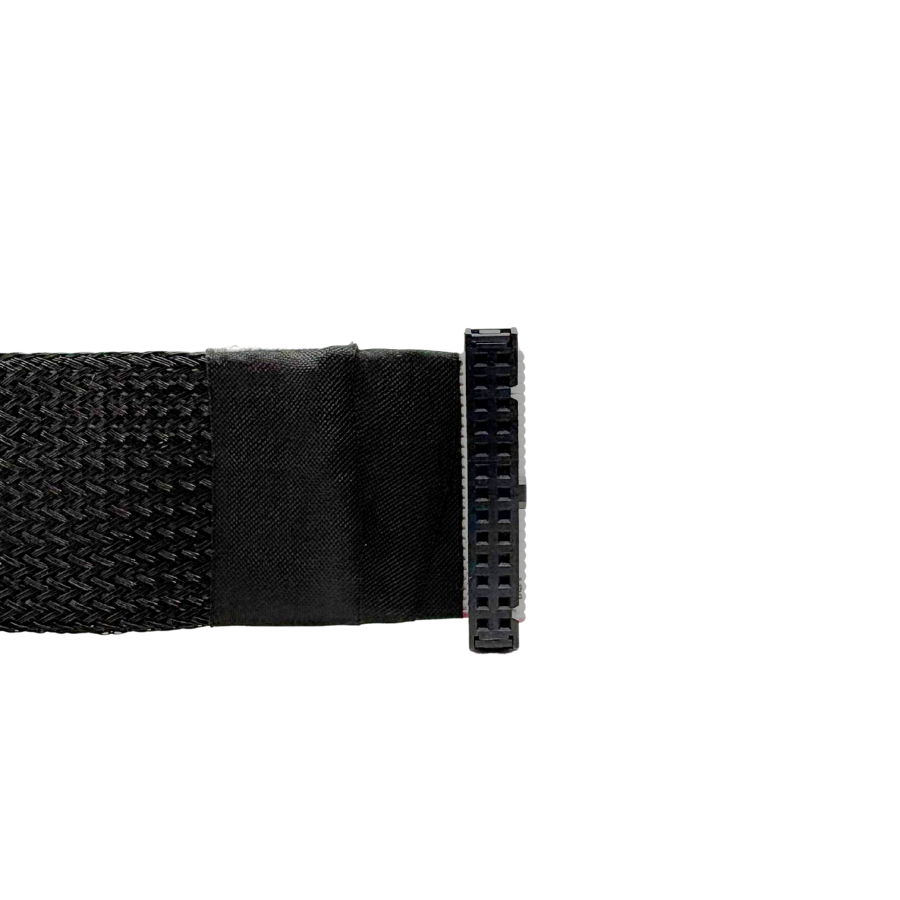

| 26-way ribbon cable | 144300T119 |

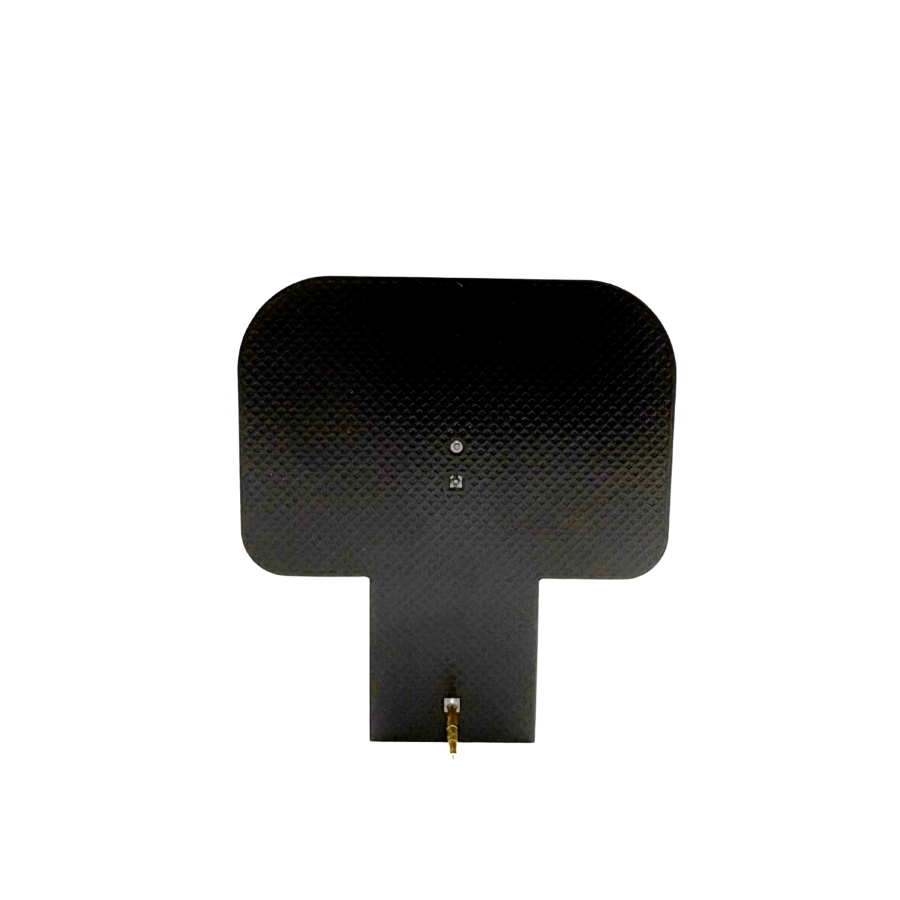

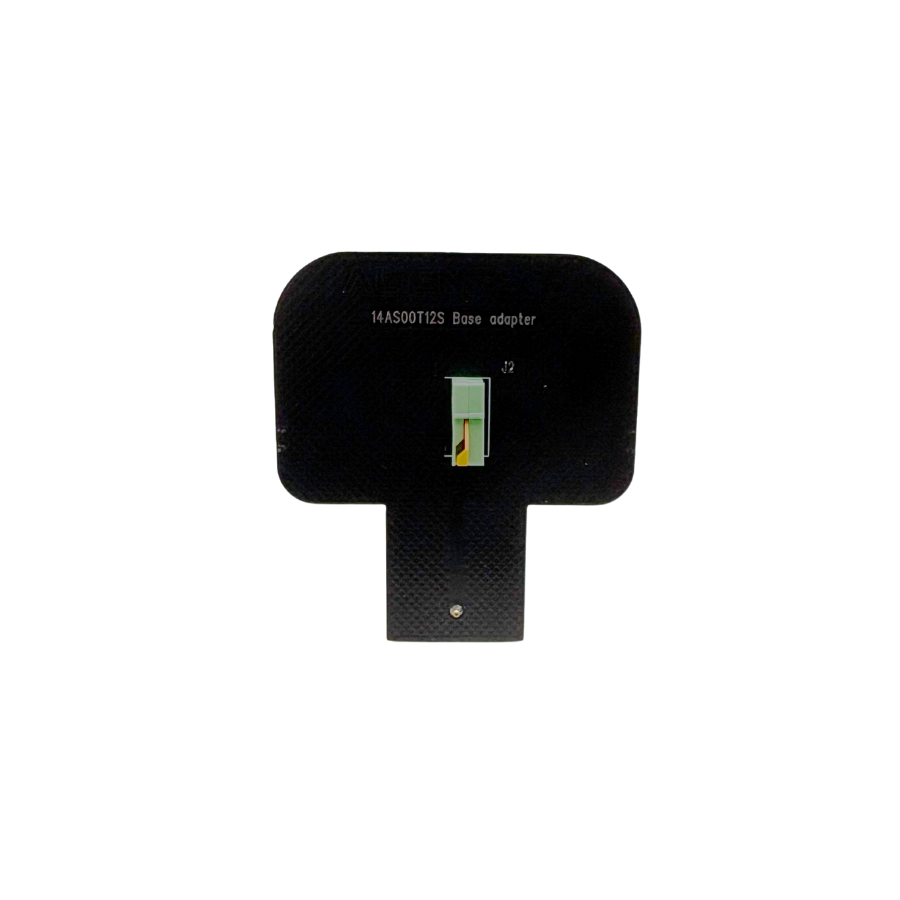

| Adapter board | 14AS00T12S |
| Jumpers | Included for required connections during the unlock procedure |
| Connection cables | Cables for connection to the ECU VFL3 signal or to the 14AS00T12S adapter board |
| Ferrites | Included |
| Spare soldering wire | Included for workshop use during ECU connection procedures |
Where is it useful?
The supported applications include diesel and petrol passenger cars, high-performance vehicles and SUVs, together with commercial vehicles and agricultural machinery. Brands listed by Alientech include Audi, Bentley, Ford, Hyundai, Iveco, Kia, Land Rover, Porsche, Volkswagen, Peugeot, Vauxhall, New Holland, John Deere and others. Exact compatibility should always be checked against the current KESS3 vehicle and protocol list before work begins.
What else is required?
The new protocols are available to KESS3 users with CAR BENCH/BOOT activation and an active subscription. The KESS3 Unlock Module itself is required for the supported BOOT Unlock procedure. After unlocking, the ECU can be programmed in BOOT mode through KESS3 in line with the available protocol functions.
